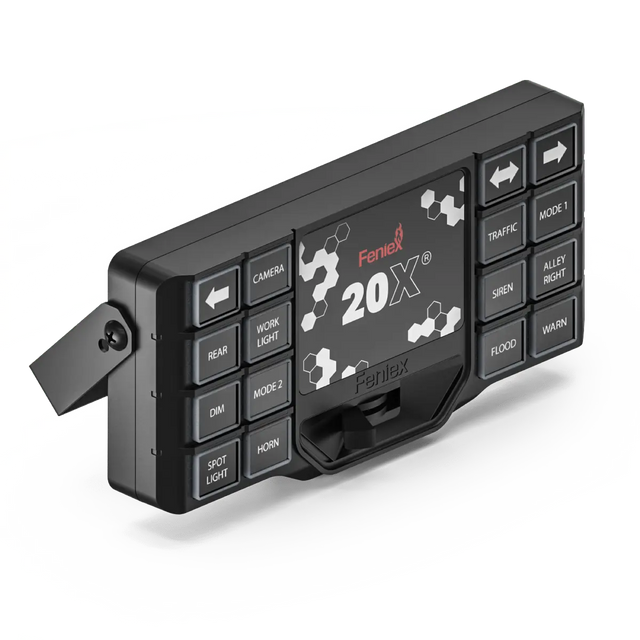

20X Controller

Manufacturer-direct item

This Feniex product is processed and shipped directly from Feniex in the United States and is not stocked in Ottawa.

Allow approximately 2–3 weeks for manufacturer processing, followed by approximately 3–5 business days for DHL Express delivery to Canada once dispatched.

We generally arrange Canadian deliveries with applicable duties, import taxes and brokerage prepaid when the shipping service allows. Additional charges may occasionally be assessed by the carrier or customs. If a payment request is presented at delivery, please contact us before paying so we can review the shipment.

Timelines are estimates and may vary with manufacturer availability, carriers and customs.

Simple. Powerful. Reliable.

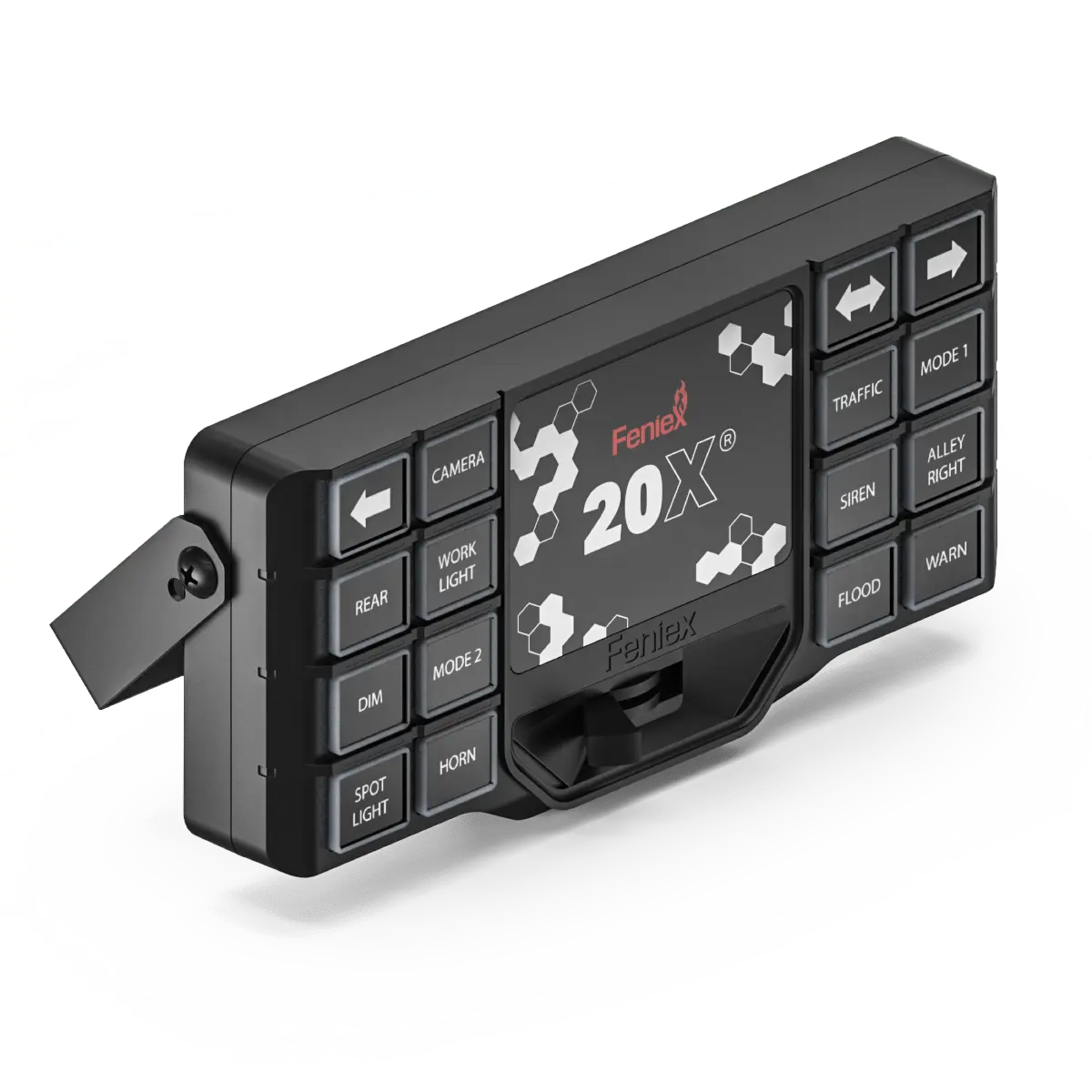

The Feniex 20X Controller is a compact, purpose-built control system designed for emergency vehicles, work fleets, and upfitters who demand reliability without complexity. With 20 outputs powered through solid-state relays, the 20X delivers smooth, quiet operation and fast response times while eliminating the failure points of traditional relays.

This controller requires no software programming—just straightforward wiring and an optimized button layout for intuitive operation. Equipped with two low-side and three high-side trigger inputs, an integrated slide switch, and a 2-channel wig-wag function, the 20X provides flexible control for a wide range of emergency lighting and auxiliary equipment.

Key Features

• 20 Channel Outputs for streamlined power distribution
• ️ Solid-State Relays for fast, quiet, durable performance
• Integrated Slide Switch for quick primary control
• Built-In Day/Night Mode with high-beam override
• 2 Low-Side + 3 High-Side Inputs for flexible wiring
• 2-Channel Wig-Wag Function included
• ️ No Software Required — plug-and-play simplicity
• LED Health Indicator for real-time feedback
• ️ Compatible with most emergency lights and systems
• Mounting faceplates available for Troy, Havis, and Jotto
• Made in Austin, TX.

Specifications

• Controller Dimensions: 7.25” × 1.13” × 3.5”
• Relay Dimensions: 6.3” × 4.4” × 1.6”
• Input Voltage: 11–16 VDC
• Current Draw: 100mA
• Amps per Output: 3A @ 13V
• External Fuse: 125% circuit load
• Cable Length: 15 ft
