4200 Data-Link Controller

Manufacturer-direct item

This Feniex product is processed and shipped directly from Feniex in the United States and is not stocked in Ottawa.

Allow approximately 2–3 weeks for manufacturer processing, followed by approximately 3–5 business days for DHL Express delivery to Canada once dispatched.

We generally arrange Canadian deliveries with applicable duties, import taxes and brokerage prepaid when the shipping service allows. Additional charges may occasionally be assessed by the carrier or customs. If a payment request is presented at delivery, please contact us before paying so we can review the shipment.

Timelines are estimates and may vary with manufacturer availability, carriers and customs.

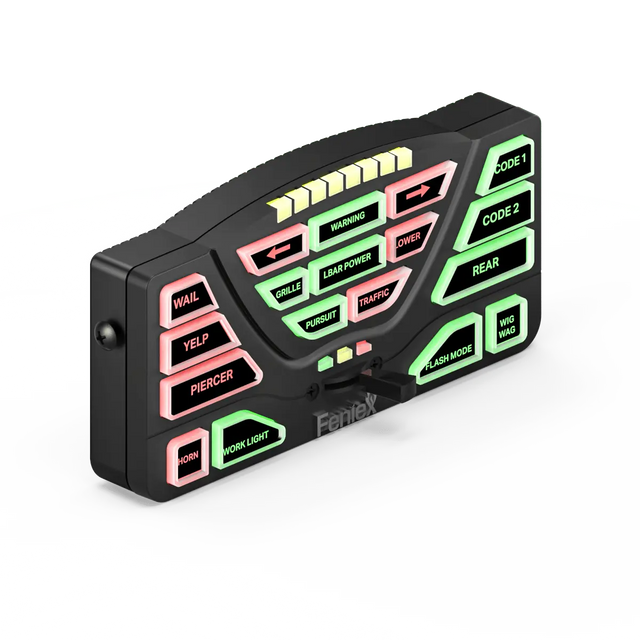

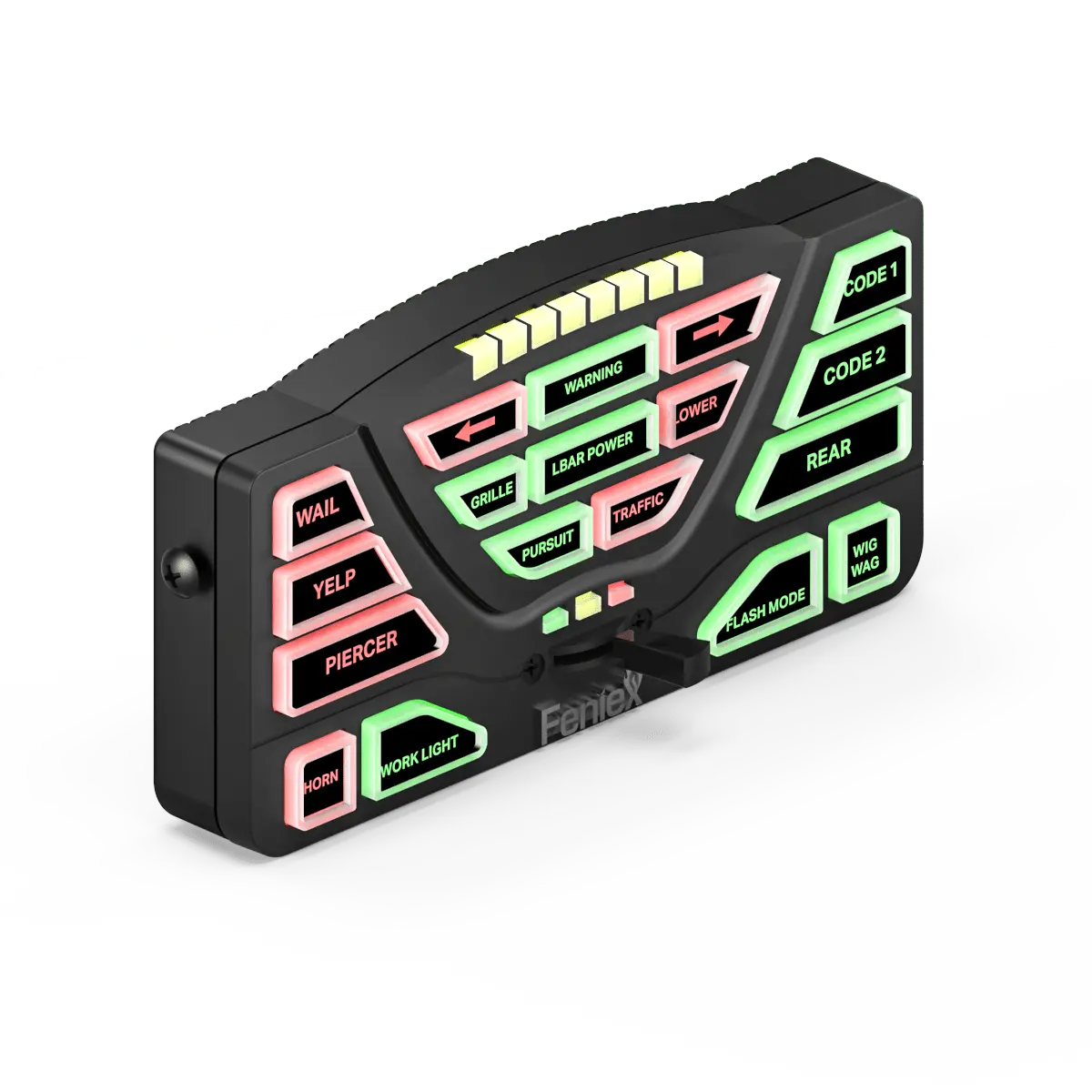

Feniex 4200 DataLink Controller

Professional-Grade Control Without Limits

The Feniex 4200 DataLink Controller (4200-DL) is the most powerful controller in the warning industry, built for fleets that demand total control. With 18 programmable outputs, a three-position slide switch, and full software programmability, the 4200-DL offers unmatched versatility for police, fire, EMS, tow, and specialty vehicles.

Engineered with short-circuit and overheating protection, this system is as reliable as it is powerful. From traffic advisors and lightbars to sirens and auxiliary equipment, the 4200-DL integrates seamlessly into complex builds and provides streamlined, intuitive operation for professionals.

Key Features

• 18 Programmable Outputs: Each rated for 10A.
• ️ Programmable Day/Night Modes: Auto-activate with ignition.
• Three-Position Slide Switch: Rapid access to primary functions.
• Two Integrated Wigwag Channels: Perfect for alternating flash.
• ️ Software Programmable: Download 4200 DL Software (2021+ or pre-2018 versions).
• ️ Failsafe Engineering: Built-in short-circuit & overheating protection.
• Made in Austin, TX.

Specifications

• Input Voltage: 12 VDC
• Max Current Output: 60 A
• Controller Dimensions: 6.8” × 3.5” × 1.3”
• Relay Dimensions: 6.3” × 3.3” × 1.5”
• Cable Length: 15 ft
