Low-Profile, Multi-Colour Power

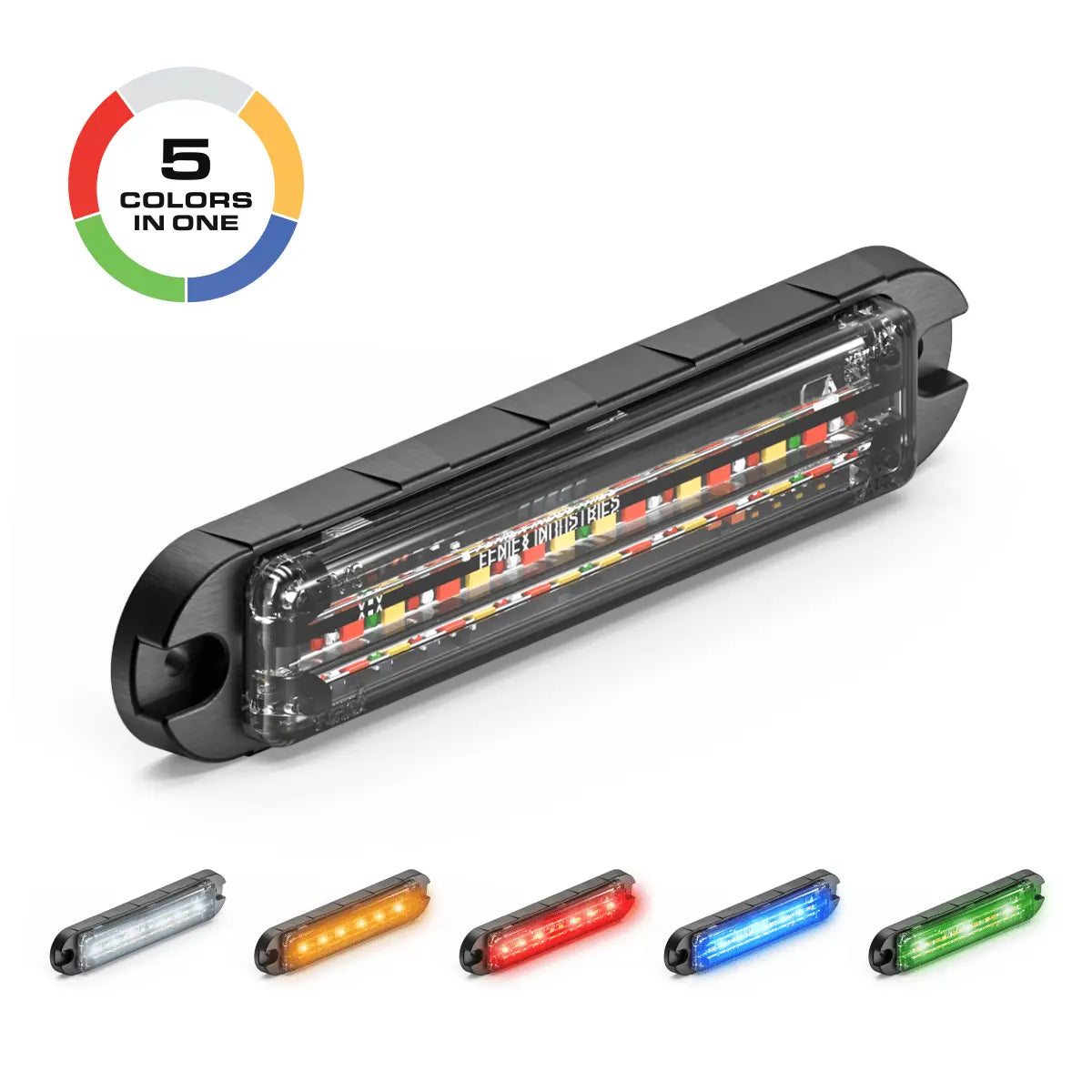

The Feniex Q® Series Flat Surface Mount combines a slim housing with the versatility of the world’s first 5-colour perimeter lighting series. Each module can project any combination of Blue, Red, Amber, White, or Green, giving fleets and emergency vehicles full flexibility in a compact design.

Choose 3-Mode technology for quick integration with a 12V switch or controller, or upgrade to Serial technology for advanced programming through Feniex Q-Link Software. With 27 LEDs, wide 60° optics, and over 20 flash patterns, the Flat SM packs serious visibility into a sleek form factor perfect for discreet or tight installs.

Key Features

• 5-Colour Capability: Blue, Red, Amber, White & Green selectable.

• ️ Two Configurations:

  • 3-Mode: 3 user-programmable modes, 14 flash patterns, easy sync.
  • Serial: Program 48 synced lightheads with 27 inputs for advanced control.
• Bright & Compact: 27 LEDs with wide 60° optics.
• Slim Fit: Ultra-thin 0.56” profile for low-profile installs.
• Mounting Options: 6 available bracket choices.
• ️ Built Tough: IP67 waterproof rating with clear-coated polycarbonate lens.
• Certified: SAE, CT13, NFPA, KKK, and ECE R65 Class 1 compliant.
• Made in Austin, TX.

Specifications

• Current Draw: 1 A
• Cable Length: 1 ft
• LED Count: 27
• Input Voltage: 10–18 V DC
• Dimensions: 5.5" × 0.56" × 1"
