Q-Flat-Wide-Surface Mount

Manufacturer-direct item

This Feniex product is processed and shipped directly from Feniex in the United States and is not stocked in Ottawa.

Allow approximately 2–3 weeks for manufacturer processing, followed by approximately 3–5 business days for DHL Express delivery to Canada once dispatched.

We generally arrange Canadian deliveries with applicable duties, import taxes and brokerage prepaid when the shipping service allows. Additional charges may occasionally be assessed by the carrier or customs. If a payment request is presented at delivery, please contact us before paying so we can review the shipment.

Timelines are estimates and may vary with manufacturer availability, carriers and customs.

Wide Coverage, Multi-Colour Power

The Feniex Q® Series Flat-Wide Surface Mount is designed to maximize visibility in a low-profile, wide-format housing. As part of the world’s first 5-colour perimeter lighting series, each module can project any combination of Blue, Red, Amber, White, or Green, giving you unmatched flexibility for emergency vehicles, utilities, tow trucks, or construction fleets.

Choose 3-Mode technology for simple integration with any 12V switch or controller, or step up to Serial technology for advanced control using the Feniex Q-Link Software. With 54 LEDs, 60° optics, and 20+ flash patterns, the Q® Flat-Wide SM offers powerful illumination in a sleek, versatile package.

Key Features

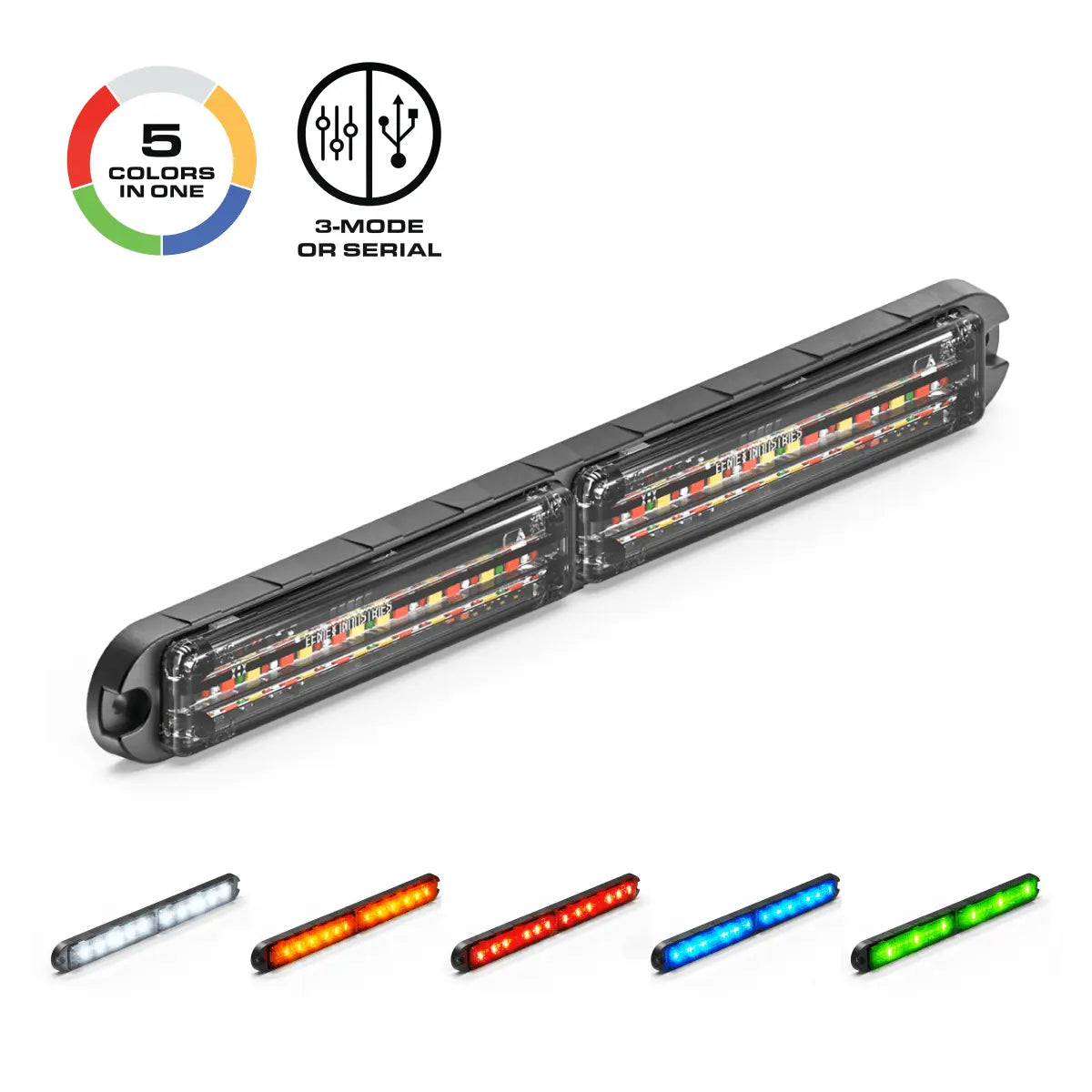

• 5-Colour Capability: Blue, Red, Amber, White & Green in each module.

• ️ Two Configurations:

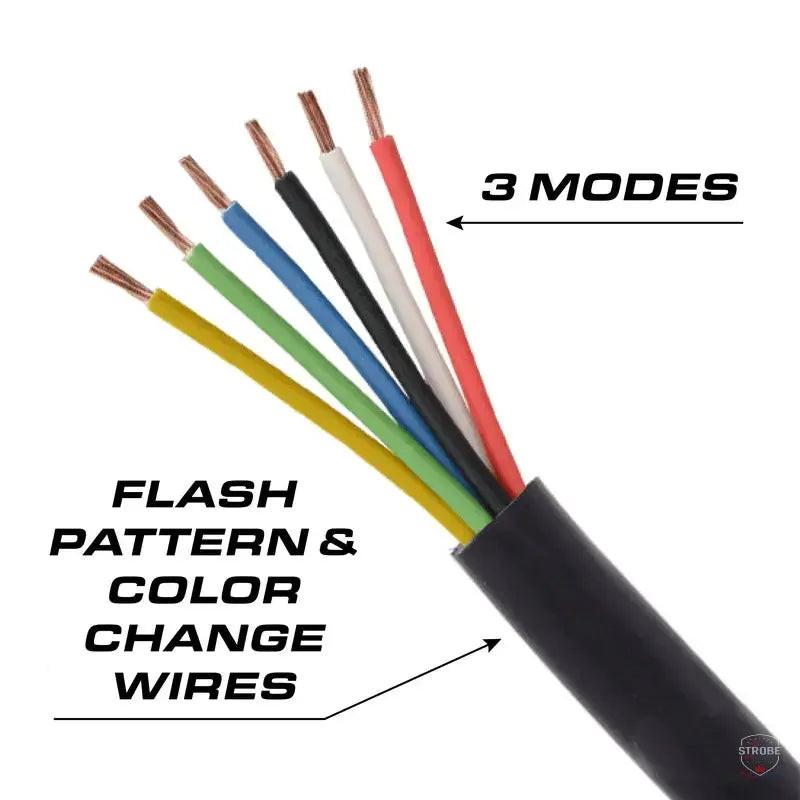

  • 3-Mode: 3 user-programmable modes, 14 flash patterns, simple sync.
  • Serial: Control up to 48 lightheads with Q-Link, 27 programmable inputs.
• Extra Bright Output: 54 LEDs with wide-angle 60° optics.
• Slim & Wide Design: Low-profile form factor for flexible installs.
• ️ Built Tough: IP67 waterproof with clear-coated polycarbonate lens.
• Certified Safe: SAE, CT13, NFPA, KKK, and ECE R65 Class 1 compliant.
• Made in Austin, TX.

Specifications

• Current Draw: 2 A
• Cable Length: 1 ft
• LED Count: 54
• Input Voltage: 10–18 V DC
• Dimensions: 9.625” × 0.56" × 1"
