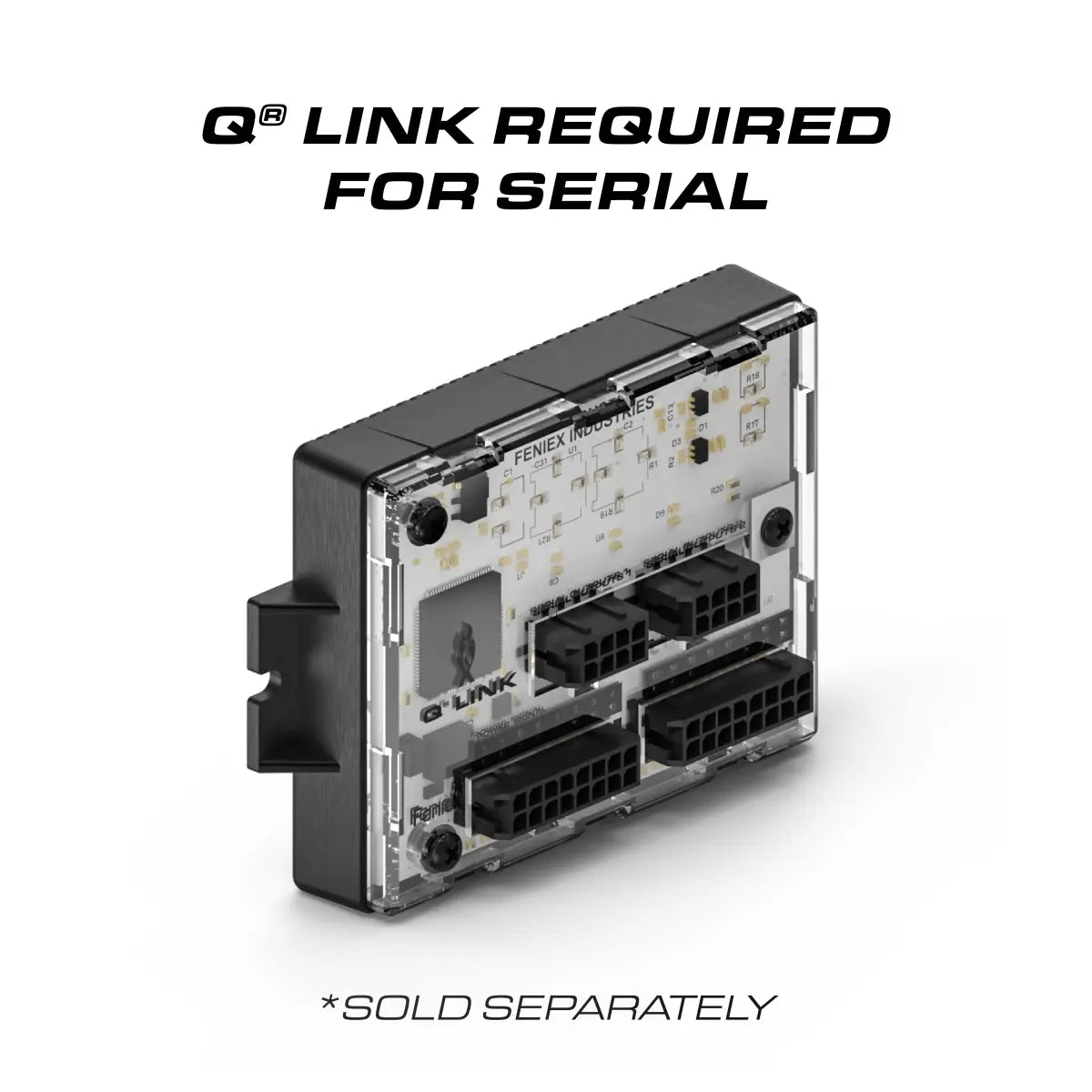

Q Link Module

Manufacturer-direct item

This Feniex product is processed and shipped directly from Feniex in the United States and is not stocked in Ottawa.

Allow approximately 2–3 weeks for manufacturer processing, followed by approximately 3–5 business days for DHL Express delivery to Canada once dispatched.

We generally arrange Canadian deliveries with applicable duties, import taxes and brokerage prepaid when the shipping service allows. Additional charges may occasionally be assessed by the carrier or customs. If a payment request is presented at delivery, please contact us before paying so we can review the shipment.

Timelines are estimates and may vary with manufacturer availability, carriers and customs.

Simplify Your Build with Q Serial Technology

The Feniex Q® Link is the heart of the Q Series ecosystem, engineered to connect and control up to 48 Q Serial lightheads with a single device. Purpose-built for Feniex’s Serial Technology, the Q-Link eliminates the need to tap wires or juggle complex wiring harnesses. Instead, all you need are two serial wires and the intuitive Q-Link Software to program your entire setup.

Using Q Serial Zoning Technology, installers can assign zones in seconds with the included zoning magnet, then fine-tune functions and colors via software. Whether you’re setting up flood, cruise, stop, tail, or turn functions, the Q-Link ensures precise control and seamless integration across your lighting system.

Key Features

• Serial Connectivity: Syncs up to 48 Q Serial lightheads.
• Simple Setup: Only two serial wires required.
• ️ Advanced Zoning: Assign zones instantly with included magnet.
• Powerful Control: 27 programmable inputs with unlimited software use.
• Flexible Functions: Supports flood, cruise, stop, tail, turn, and more.
• Certified Reliability: SAE J1113-11 tested.
• Made in Austin, TX.

Specifications

• Current Draw: 1 Amp
• Inputs: 27 programmable
• Serial Ports: 8 (6 lightheads each, max 48)
• Cable Length: 1 ft
• Input Voltage: 10–18 VDC
• Dimensions: 5.25" × 0.88" × 1.17"
