Size your lightbar to the usable flat of the vehicle’s roof and to the widest operational footprint it carries, whether that’s a plow blade, a rollback deck, or a headache rack, not to cab width alone. For most half tons that lands in the 30 to 43 inch range; full-size pickups and rollback carriers usually need 49 to 55 inches; heavy trucks and apparatus commonly run 61 inches and up. Transport Canada’s vehicle measurement conventions and standard procurement practice both back this approach.
TL;DR:
- Lightbar length should match the widest operational equipment, such as plow blades or rollback decks, not just cab width or roof dimensions.
- Measure the usable flat roof area between gutters or raised edges to determine the correct bar length, avoiding reliance on sheet specs alone.
- Mounting hardware and roof accessories like antennas or gutters can restrict maximum lightbar length, so verify clearance before ordering.
- Standardizing on a multi-length product family simplifies spare parts, training, and control logic, especially for fleets with diverse vehicle types.
- For most full-size pickups, a 49 to 55 inch lightbar fits well, with longer lengths needed for rollback carriers and heavy trucks to cover wider swept paths.
What size lightbar do you need for your vehicle type?
There’s no single correct lightbar length across a fleet, because the right size depends on what the vehicle does, not just what it is. A service van and a rollback carrier can share a chassis class and still need bars that differ by 20 inches or more, because one clears a curb and the other clears a loaded deck.
Here are practical starting ranges by vehicle role, drawn from common trade sizing and adjusted for the equipment each vehicle actually carries:
- Compact service vehicles and UTVs: Mini bars or dash and deck bars in the shorter range typically cover these platforms without overhanging narrow rooflines. Check the mini light bars category if your roof space is tight.
- Mid-size and half-ton pickups: 30 to 43 inches is a common starting range, wide enough for solid front and rear visibility without crowding a standard cab roof.
- Full-size pickups and rollback carriers: 49 to 55 inches covers the roof adequately on most full-size trucks. Rollbacks often need 55 inches or more once you’re sizing for deck coverage rather than cab width, a distinction covered in more detail in our guide to tow truck light bars.
- Heavy trucks and apparatus: 61 to 68 inches and above is typical once plow width, deck width, or dual rear axles come into play.
The key decision point isn’t the cab, it’s the blade or the deck. A half-ton with a wide snow plow attachment needs a bar sized to the plow’s width, not the truck’s, because the goal is visibility across the full swept path of the equipment. Our snow plow warning lights guide covers this scenario specifically. The same logic applies to a rollback carrying an oversize load: size to the deck’s outer edge, not the cab roof, or you’ll end up with blind corners exactly where other drivers need to see you.
How do you measure usable roof space and equipment width?
Getting this step wrong is the single most common cause of returns and field modifications. Follow these three checks before you order anything.

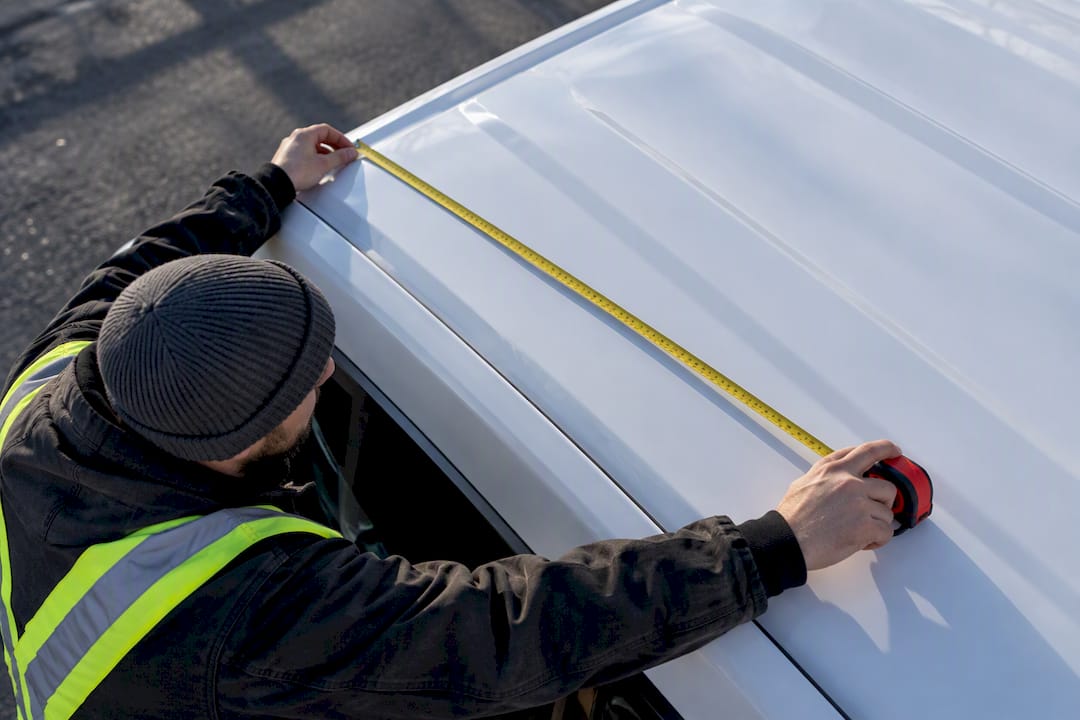

- Measure the usable flat of the roof. Most cab roofs have a curved crown and raised gutters running along the edges. The usable flat is the section between those gutters where a bracket can sit level. Installers frequently discover the true flat is several inches narrower than the roof’s outer dimension, which is why measuring the marketing spec sheet against the truck itself matters more than trusting a chart.
- Measure the widest deployed equipment. Extend the plow blade, the rollback deck, or the headache rack to its working width and use that figure as your minimum coverage width, not the cab. The guide to Canadian vehicle specification measurement conventions documents how overall and rear-end lengths are measured and which optional equipment is excluded, a useful reference when you’re reconciling a spec sheet against what’s actually on the truck.
- Check mounting clearance and confirm cable routing. Look for roof racks, antennas, sunroofs, and gutter-mount hardware that could interfere with bracket placement, and confirm the controller lead length reaches your cab-mounted switch before the bar arrives.
Pro Tip: Order the correct controller lead length up front. Bars longer than roughly 30 inches often draw more current and route through longer cable runs, and a field splice to extend a lead is a workaround, not a fix.
Why standardize lightbar families across a mixed fleet?
A mixed fleet, tow trucks, plow trucks, service vans, and rollbacks under one roof, creates a real temptation to order whatever length fits each vehicle and move on. That approach works until your technicians are carrying five different remote switches and your parts bin has six incompatible cable pigtails.
Standardizing on a single product family that offers multiple lengths with the same control logic solves this. Your crews learn one switch pattern, your spares stock covers every vehicle in the fleet, and your training time drops because the mounting hardware and wiring conventions stay consistent across the lineup.
A few things still vary SKU to SKU within a family, so verify them individually rather than assuming uniformity:
- Cable and controller lead length, which changes with bar length and mounting position
- Mounting hardware, since roof brackets, headache rack brackets, and gutter mounts aren’t interchangeable
- Voltage range and SKU-specific compliance notes, which Strobe My Ride documents at the product level
Adopt a multi-length approach as soon as your fleet mixes more than two vehicle classes; a single fixed length almost always leaves someone under-covered or hanging six inches off the roofline.
How do mounting and accessories affect the length you choose?
Mount type sets a hard ceiling on usable length before you even get to vehicle role. Roof mounts on a full-size cab generally support the longest bars in a lineup, while headache rack mounts on a rollback are often constrained by the rack’s own width rather than the roof beneath it. Door-jamb and magnetic mounts are built for shorter, lighter bars and temporary or supplemental use, not for a full-length primary warning bar.
Controller lead length becomes a real cost issue once you’re above roughly 30 inches, because longer bars typically draw more current and sit farther from the cab. Ordering the correct lead length with the bar avoids a last-minute extension purchase or, worse, a field splice that a technician has to improvise on a shop floor.
- Roof mounts: generally the widest range of supported lengths on full-size trucks
- Headache rack and rollback deck mounts: length is capped by the rack’s width, not the cab roof
- Door-jamb and magnetic mounts: shorter bars only, typically supplemental rather than primary
When a single roof bar can’t cover every angle, supplement rather than oversize. Surface-mount LEDs, hideaways, and grille or rear modules fill approach and rear visibility gaps that a longer bar alone won’t solve efficiently. Our comparison of roof bars versus individual modules walks through when a distributed setup outperforms a single oversized bar.
Quick procurement checklist before you order
Run through this list before you place an order, whether you’re buying one unit or standardizing across a fleet:
- Confirm the usable roof width and the widest operational footprint the vehicle carries (plow, deck, rack)
- Confirm the mounting option, bracket fit, controller lead length, and voltage compatibility for the specific SKU
- Confirm SKU-specific certifications, permitted colours, and spare-parts availability directly with Strobe My Ride
- Prefer multiple lengths from the same product family to keep control logic and spares consistent across mixed fleets
- Check clearance against existing roof accessories, gutters, and antennas before finalizing bracket selection
If any of these details aren’t listed on the product page, contact Strobe My Ride directly rather than assuming compatibility. Specifications, certifications, and permitted colours vary by individual SKU and by jurisdiction, and guessing on any of them is how returns happen.
How Strobe My Ride helps you pick the right length
Once you know your target range, matching it to a stocked SKU is the easy part. Strobe My Ride is Ottawa-based, which means Canadian buyers get domestic stock and faster shipping instead of waiting on cross-border freight, plus real setup help from people who answer the phone.
For full-size pickups and many rollback applications, the Patrol Bar Quad 47 with STT fits the 49 to 55 inch guidance discussed above. If your roof profile calls for a slightly slimmer footprint at a similar length, the Patrol Bar Quad 50 Slim with STT covers the same range with a lower profile. Heavier trucks and rollback decks that need to cover a wider swept path can step up to the Patrol Bar Quad 60 with STT, all built as full-size lightbars within the same control family.
The next step is straightforward: measure your usable roof flat and your widest operational footprint, confirm your mount type and controller lead length, and contact Strobe My Ride for SKU-level fit advice before you order. Browse the full lineup across the SMR product families to compare lengths side by side, or place your order directly once you’ve confirmed fit.
FAQ
What Length Lightbar Do I Need for a Full-Size Pickup?
Most full-size pickups take a lightbar in the 49 to 55 inch range, sized to the usable flat of the roof rather than the full roof width. Rollback carriers built on a full-size chassis often need the longer end of that range, or more, once you’re sizing for deck coverage instead of cab coverage.
How Do I Measure My Truck’s Usable Roof Width?
Measure the flat section between the roof’s gutters or raised edges, not the outer roof dimension, since the crown and gutters usually aren’t suitable for mounting brackets. The Canadian vehicle specifications guide documents standard measurement conventions if you need a reference point.
Should I Size My Lightbar to the Plow Blade or the Cab?
Size to the plow blade or whatever equipment extends beyond the cab, since that’s the width other drivers actually need to see around. A bar sized only to cab width can leave the corners of a wide plow or rollback deck without adequate coverage.
Can I Use One Lightbar Length Across My Whole Fleet?
A single fixed length rarely fits a mixed fleet well, since vehicle roles vary from compact service trucks to heavy apparatus. Standardizing on a product family that offers multiple lengths with the same control logic, such as the Patrol Bar Quad lineup, keeps spares and training consistent without forcing every vehicle into the same size.
