An effective security vehicle lighting setup combines a multi-level roof warning light, perimeter surface mounts, a dedicated scene light and a single master control switch. This balance addresses three priorities at once: making the vehicle visible to approaching traffic, supporting positive identification by observers or cameras and avoiding glare that blinds the people you are trying to warn. Before specifying components, confirm camera compatibility and run the pre-install checklist below so the setup performs correctly from day one.
TL;DR:
- Ensure your warning lights are mounted on the roof centerline when possible, avoiding obstructions and glare that can diminish visibility or blind drivers.
- Confirm all components, including warning and scene lights, meet manufacturer specifications for brightness, beam control, and photometric performance to prevent glare and ensure effective coverage.
- Test your lighting system at night to verify camera compatibility and proper illumination levels, especially considering the intensity and placement of lights relative to cameras.
- Verify that auxiliary lighting does not obstruct or reduce the visibility of mandatory factory lamps, and keep certification records for compliance inspections.
- Plan wiring carefully to manage electrical load, route harnesses away from heat and sharp edges, and conduct routine maintenance checks to keep lights functional and reliable.

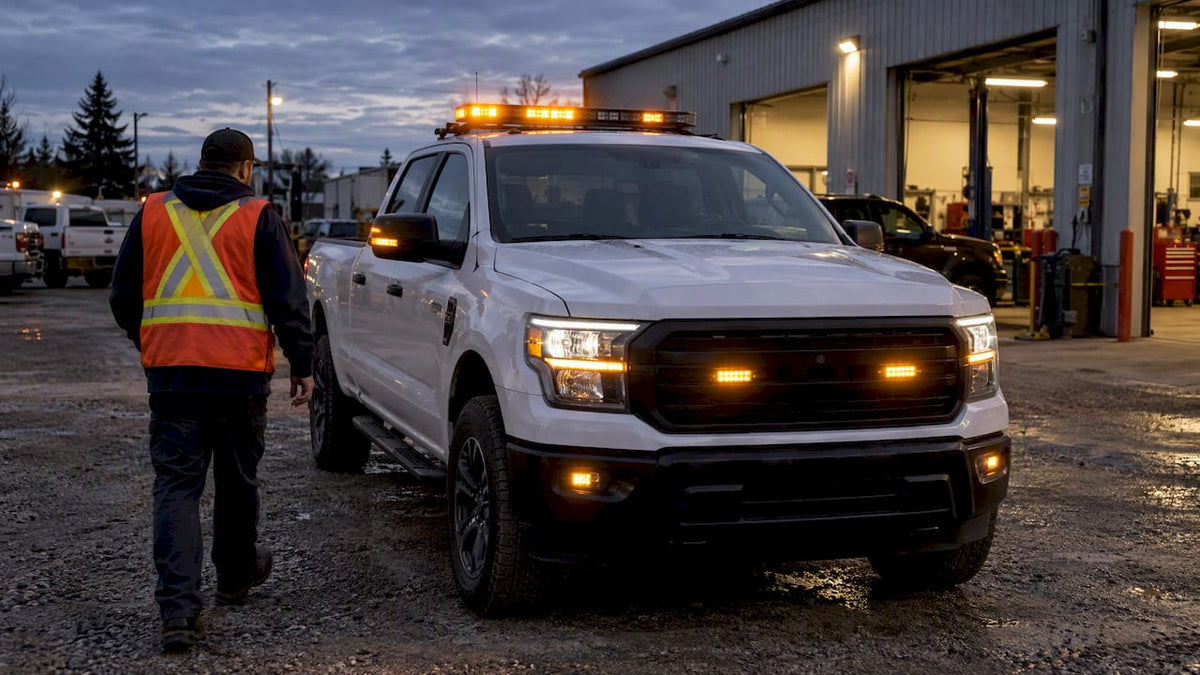

Types of warning and security vehicle lighting
Choosing the right lighting starts with understanding what each category of equipment is built to do. Warning lights and scene or work lights serve different functions, and most security vehicle setups need both.
Warning lights exist to alert other road users and personnel that a vehicle is present, stationary or operating in an unusual way. Scene or work lights exist to illuminate an area so people and cameras can actually see what is happening there. Mixing up the two roles, for example relying on a strobe pattern to light a work area, tends to produce poor results on both fronts.
Within warning lights, the main distinction is physical format:
- Full-size lightbars mount across the roof and deliver the widest field of warning coverage, often combining multiple optical heads for 360-degree visibility.
- Mini lightbars offer similar multi-directional coverage in a shorter footprint, useful where roof space or vehicle profile is limited.
- Beacons are single rotating or LED-pulse units, often used as a secondary or backup warning source.
- Surface mounts are low-profile units fixed to grilles, mirrors, pillars or rear panels to extend coverage around the vehicle’s perimeter.
- Hideaways are compact LED modules installed behind grilles or inside housings for discreet warning signals.
- Scene and work lights are flood or spot-pattern fixtures aimed at illuminating a defined area rather than signalling.
Optical behaviour matters as much as placement. Strobe and LED pulse patterns draw attention quickly and are typically used for warning functions, while steady-burn output is better suited to scene illumination where consistent light, not movement, helps an observer or camera resolve detail. Rotating beacons sit between the two, offering motion-based attention with a steadier overall light signature. Beam control, meaning how tightly or widely a fixture spreads its output, determines whether a light does its job without spilling into places it shouldn’t, such as oncoming windshields or a camera’s field of view.
Because photometric performance (how bright a light appears from a given angle and distance) varies by individual product, always check the specification data on the manufacturer’s product page before finalizing a selection rather than assuming similar-looking units perform the same way.
Placement and mounting: positioning lights without creating glare
Correct placement is what turns a well-chosen set of lights into a setup that actually improves safety. Poor mounting choices can cancel out even the best components, either by leaving coverage gaps or by throwing glare at the people you need to see your vehicle.
Start with the roof. A centreline mount gives symmetrical coverage to both sides of the vehicle and is the simplest reference point for aiming. An offset mount may be necessary where cab-mounted equipment, antennas or sunroofs interfere with a centred position, but offset placement should be checked carefully to confirm it does not create a blind side with reduced warning visibility.
A practical sequence for planning mounting positions:
- Identify every approach vector the vehicle needs to signal toward: front, rear and both sides.
- Map existing roof obstructions (antennas, racks, sunroofs) before choosing a lightbar position.
- Place perimeter surface mounts to close any gaps the roof unit cannot cover, particularly at the rear quarters and side mirrors.
- Confirm scene lights are aimed at the work or approach area, not at the roadway or oncoming vehicles.
- Check all mounting points against the vehicle’s factory-required lamps to confirm nothing is obstructed.
Beam control deserves particular attention during aiming. Tight beams with defined cut-offs limit how far light spills beyond its intended target, which matters both for neighbouring properties and for drivers approaching from an angle. A fixture that floods light well past its intended zone creates glare rather than visibility, undermining the setup’s purpose.
Structural mounting is not just about appearance. Surface mounts, hideaways and lightbars all need secure attachment points that can withstand vibration and weather without loosening over time. Any mounting location must avoid obstructing lamps the vehicle is required to carry under federal lighting rules, since an auxiliary light that blocks or interferes with a required lamp creates both a safety and a compliance problem.
Pro Tip: Walk around the vehicle at night with the lighting active before finalizing any mounting position; glare and gaps are far easier to spot from the outside than from a wiring diagram.
Making sure your lighting works with cameras and in low light
The only reliable way to confirm a security lighting setup works is to test it in the conditions it will actually face: real darkness, not daylight or a lit shop bay. RCMP guidance on security lighting considerations recommends measuring light at head height, around 1.5 metres, and directly checking how it appears to both observers and cameras under true low-light and nighttime conditions.
Sunrise and sunset positions deserve specific attention.
A few placement principles reduce the risk of camera interference:
- Avoid mounting any warning or scene light directly in front of a camera’s field of view, where direct glare will wash out the image.
- Favour positions above, behind or staggered relative to the camera lens rather than level with it.
- Use multi-level lighting, meaning a lower-intensity perimeter layer paired with higher-intensity spot illumination, so cameras are not forced to adjust between extremes.
- Where available, use sensor or photo-cell controls to manage light levels automatically as ambient conditions change.
Target light levels vary by purpose and location. RCMP guidance lists an average of roughly 80 lux with a minimum uniformity ratio of 0.33 for emergency vehicle parking areas, a notably higher standard than typical general parking illumination. This distinction matters when deciding how much scene lighting a vehicle needs for on-site operations versus simple roadside visibility.
Detection and identification are two different lighting jobs. Detecting that something or someone is present generally needs less light and less uniformity than identifying a face or reading a licence plate, which is why security lighting guidance separates the two targets rather than applying one lux figure everywhere.
Compliance basics: what the rules require before you install anything
Before ordering or fitting any auxiliary lighting, confirm how it interacts with the lamps your vehicle is already required to carry. Transport Canada’s guidance on using vehicle lights to see and be seen explains how required factory systems, including automatic daytime and low-light lighting, are expected to function, and auxiliary devices cannot impair that function.
Federal publications on lighting equipment location requirements for trucks, buses and multipurpose vehicles, including the TSD 108 series, set out required lamp types, locations, colours and mounting heights. These documents are the baseline reference for anyone adding warning or scene lighting to a commercial or municipal vehicle.
A few practical checks follow directly from these references:
- Confirm that any auxiliary light’s mounting position does not block or reduce the visibility of a required factory lamp.
- Verify the specific SKU’s certification and photometric documentation before purchase, since performance and approval vary by product rather than by category.
- Keep certification and installation-angle records on file, since inspectors may request this documentation during a compliance check.
- Treat federal guidance as the starting reference and consult the primary regulatory text or a certifying body for any decision that depends on your specific vehicle, jurisdiction or use case.
This article summarizes the regulatory landscape; it is not a substitute for reviewing the primary Transport Canada documents or consulting a qualified compliance professional for your specific setup.
Planning the install: a pre-install checklist for vehicle prep
Most installation problems trace back to skipped planning steps, not faulty equipment. A short survey before any drilling or wiring begins saves time and avoids rework.
- Survey the roof structure for strength and existing equipment, noting antenna positions, OEM lighting, roof racks and any accessory that might conflict with a new mount.
- Plan the power and control architecture, including where the master switch and dash controls will sit, and confirm these details with a qualified electrician or installer rather than guessing at load or routing.
- Order the correct mounting kit for each SKU and review the product page’s installation instructions before fitment, since mounting hardware is not always interchangeable across product lines.
- Commission the system immediately after fitment with a full function test: every flash pattern, the master switch, and each scene light, checked while the vehicle is stationary and again during a short test drive.
Fleet operators managing larger vehicles should also weigh how added lighting equipment interacts with other upfit requirements. Standards covering areas like wheelchair securement in Canadian fleets illustrate how multiple equipment systems on a single vehicle need to be planned together rather than installed in isolation.
Pro Tip: Keep a written record of every mounting point, wire routing decision and SKU installed; the next technician who services the vehicle will need it, and so will you at renewal or resale time.
For SKU-specific mounting guidance, the Patrol Line installation instructions outline the steps for that product family in detail.
Keeping lighting reliable: maintenance and periodic testing
A security vehicle’s lighting is only as good as its last functional check. Build testing into a routine rather than waiting for a failure to notice a problem.
- Run a daily visual check for cracked lenses, loose mounts or visible water ingress around housings.
- Run a weekly functional test covering every flash pattern, the master switch and each scene light independently.
- Log each test with simple notes: pattern confirmed, any water ingress observed, connector condition.
- Treat flickering, intermittent operation or a pattern that won’t clear as signs of an electrical or seal failure that needs prompt attention rather than a quick reset.
- Plan for spare connectors and common wear parts on hand, since a failed unit during an active shift is harder to manage than a failed unit sitting in a parts bin.
A documented fault, caught during a weekly check, is far cheaper to fix than the same fault discovered mid-shift. For detailed fault diagnosis steps, see this guide to vehicle lighting troubleshooting.
Matching Strobe My Ride products to common setups
A few specific products illustrate how the setups described above come together in practice, drawn from Strobe My Ride’s current catalogue.
- The Fleet SM Square – Surface Mount Warning + White Puddle Light combines a warning surface mount with a white puddle light, suited to close-in illumination around doors or entry points alongside perimeter warning coverage.
- The Fleet SM Stealth - Smoked Lens Surface Mount uses a smoked lens for a lower-profile signal, appropriate where a less conspicuous warning presence is preferred.
- The Patrol Link Plug & Play 4 - Exterior LED Warning Light Kit is built around plug-and-play exterior warning lights, simplifying installation for operators who want a complete kit rather than sourcing individual components.
Power consumption and wiring practices that prevent electrical faults
LED lighting draws far less current than older incandescent or halogen warning systems, but a multi-level setup with several surface mounts, a lightbar and scene lights still adds meaningful load to a vehicle’s electrical system. Underestimating total draw is a common source of dimming, flickering or premature component failure.
Confirm the combined current draw of every planned light against the vehicle’s available capacity before ordering, rather than adding components one at a time and hoping the system keeps up. A master switch, properly wired, lets an operator cut all auxiliary lighting at once rather than isolating faults light by light.
Wiring routes matter as much as total load. Routing harnesses away from heat sources, moving parts and sharp edges reduces the risk of chafing and shorts over the vehicle’s service life. Because wiring specifics depend on the vehicle, the chosen SKUs and local installation standards, confirm connection details with a qualified installer or electrician rather than relying on general guidance, and review each product’s own installation documentation for its specific requirements.
Common installation risks and how to manage them
Installing roof-mounted and perimeter lighting involves real physical risks, starting with working at height on a vehicle roof. A secure ladder or platform, plus a second person present during the lift and mount of heavier lightbars, reduces the most common cause of installation injuries: falls and dropped equipment.
Electrical risk is the second major concern. Any work on a vehicle’s power system carries a risk of shock or short circuit if disconnections are not handled correctly. Disconnecting the battery before starting electrical work, and confirming circuits are de-energized before testing connections, are basic precautions every installer should follow.
Sharp edges on roof mounts and drilled panels are a frequent source of cuts during fitment. Deburring any drilled hole and using grommets where wiring passes through metal reduces this risk and protects the wiring itself from long-term chafing.
Finally, confirm every mounting point can bear the weight of the fixture under vibration and load before the vehicle returns to service. A loose fixture discovered at highway speed is a far more serious problem than one caught during a pre-road test in the shop.
Customizing lighting for different operational environments
Not every security vehicle needs the same lighting configuration. A vehicle used primarily for static site patrol, parked for long periods in a lot or perimeter position, benefits from stronger scene lighting and lower-intensity perimeter warning, since the priority is sustained visibility rather than rapid attention-grabbing.
A vehicle used for active response or escort work has the opposite priority: strong, highly visible warning output takes precedence, since the goal is to be seen and recognized quickly by other road users.
Vehicles operating in mixed environments, moving between site patrol and response duties, often benefit from a layered approach: a full warning lightbar for response situations, paired with surface mounts and scene lights that can be used independently for static illumination needs. A single master control with separate switching for warning and scene functions supports this kind of flexible use without requiring the operator to manage multiple independent systems.
Matching the lighting configuration to the vehicle’s actual duty cycle, rather than defaulting to the most visible setup available, avoids both underlighting in demanding conditions and unnecessary glare in situations that call for a lower profile.
Legal considerations beyond basic equipment compliance
Equipment-level compliance, confirming a lamp’s location, colour and certification meet federal requirements, is the starting point, not the full picture. Many municipalities and provinces layer additional rules on top of federal equipment standards, covering where and how certain lighting colours or patterns may be used, particularly for vehicles that are not formally designated emergency vehicles.
Operational limitations also apply separately from equipment rules. Even fully compliant lighting may be restricted in how and when it can be activated depending on the vehicle’s designated role and local bylaws governing its use on public roads.
Because these rules vary by province and municipality and depend heavily on a vehicle’s specific designation and use case, this article does not attempt to summarize them. Confirm local bylaw requirements with the relevant municipal or provincial authority, and verify equipment-level certification details on the emergency vehicle lighting product pages, before finalizing any installation plan.
Strobe My Ride: sourcing the components for your setup
A supplier stocks LED warning lights, surface mounts and plug-and-play warning kits with shipping available across the country. The catalogue includes several product lines covering the component categories described throughout this guide.
For readers planning a setup along the lines described here, the practical next step is reviewing SKU-specific specification sheets to confirm certification and mounting compatibility before ordering. Every product page lists the installation documentation needed to plan wiring and mounting correctly for that specific unit. Browse the full range of lighting products to compare components against the configuration your vehicle and operation require.
Sources
- Using your vehicle lights to see and be seen | Transport Canada
- GCPSG-004 Security lighting considerations guide | RCMP
FAQ
How do I install emergency vehicle lighting?
Installation generally follows a sequence: survey the vehicle for mounting points and existing equipment, plan power and control wiring with a qualified installer, mount and wire each component per its own installation instructions, then commission the system with a full function test. Specific wiring and mounting steps vary by product, so always follow the SKU’s own installation documentation, such as the Patrol Line installation instructions.
What lightbar does the RCMP use?
This detail is not publicly listed in available regulatory or product documentation, so it cannot be confirmed here. For guidance on how the RCMP evaluates security lighting performance generally, see its security lighting considerations guide.
What are some examples of security lighting?
Security lighting includes roof-mounted lightbars, mini lightbars, beacons, surface mounts, hideaways and dedicated scene or work lights, each serving either a warning or an illumination function. Products like the Fleet SM Square combine a surface-mount warning light with a puddle light for close-in illumination.
What are the main types of vehicle lights used for security and warning purposes?
The main categories are full-size lightbars, mini lightbars, beacons, surface mounts, hideaways and scene or work lights, each distinguished by mounting format and intended function rather than by a fixed count. Warning types signal presence to other road users, while scene lights illuminate an area for personnel or cameras.
How do I know if my lighting setup is compliant?
Compliance depends on confirming that auxiliary lighting does not obstruct or impair any lamp your vehicle is required to carry, per Transport Canada’s lighting location requirements, and on verifying each product’s own certification documentation. Local bylaws may add further restrictions, so confirm final compliance with the relevant regulatory authority or a certifying body for your specific vehicle and jurisdiction.
