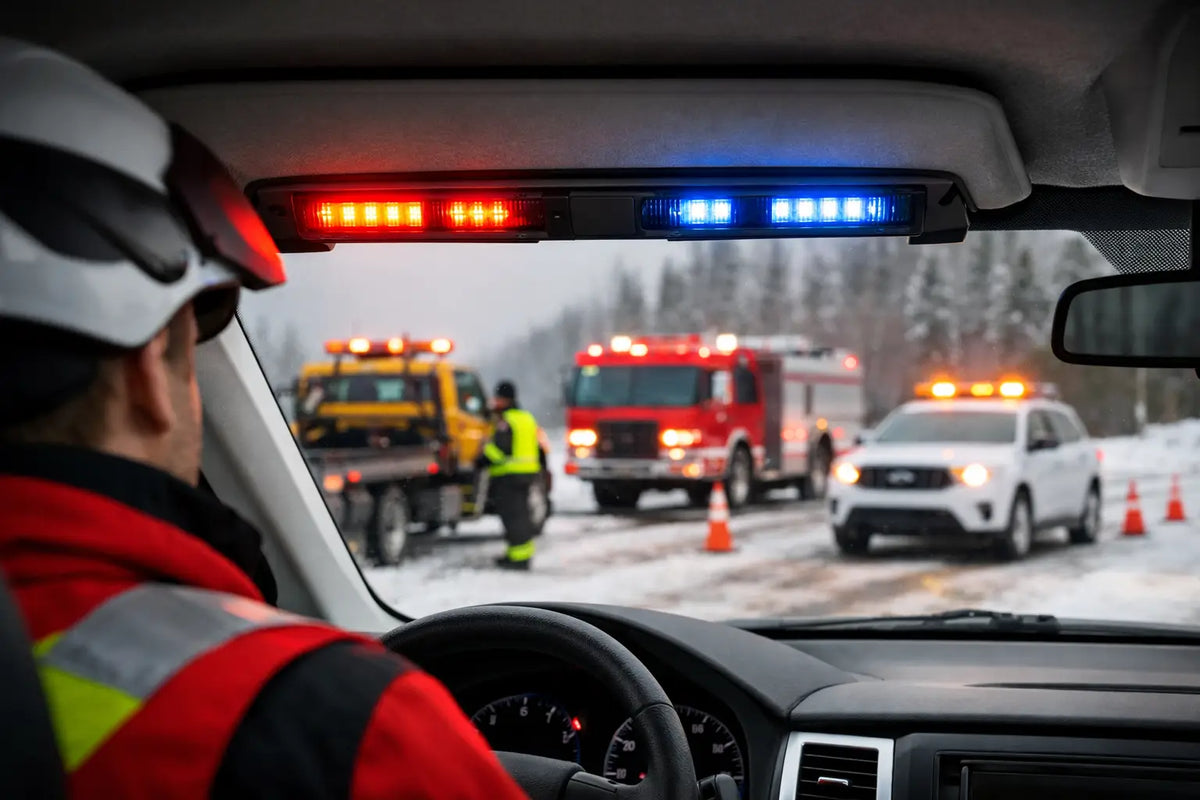

How to Mount Visor Lights Without Blocking Safety

A visor light can put a strong warning signal directly in a driver’s line of sight from the outside, without the wind noise, roof drilling, or exposure of an exterior lightbar. That is exactly why installation matters. Knowing how to mount visor lights properly means more than tightening a few screws. You need to protect airbag deployment zones, preserve driver visibility, secure the unit for rough roads, and wire it so it works when the vehicle is needed.

For a volunteer firefighter, tow operator, pilot car, utility crew, or municipal fleet, a poorly mounted visor light creates avoidable problems. It can rattle loose, block the rear-view mirror, interfere with a sun visor, pinch wiring, or leave the operator with an unreliable warning system at the roadside. The goal is a clean, solid installation built for real work.

Start With the Vehicle, Not the Light

Before opening the hardware bag, inspect the upper windshield area from both seats. Visor lights are not universal in the practical sense, even when their mounting brackets are adjustable. Windshield angle, headliner shape, visor pivot locations, mirror housings, camera modules, rain sensors, and overhead consoles all affect where a unit can sit.

Hold the light in its intended position and have someone sit in the driver’s seat. Check the view through the windshield, the rear-view mirror, both sun visors, and any forward-facing safety camera. A light mounted too low may obstruct sightlines. One mounted too high may contact the headliner, make the brackets hard to secure, or direct too much output into the glass.

Also inspect the vehicle owner’s information and upfitter documentation for supplemental restraint system locations. Many modern pickups, SUVs, vans, and fleet vehicles have curtain airbags running along the roofline and down the pillars. Do not drill into, screw through, clamp onto, or route wiring across a known airbag deployment path. If you cannot positively identify a safe route, use an experienced vehicle upfitter.

A proper pre-install check should confirm:

  • The light does not block the driver’s forward view or mirror view.
  • Both sun visors can still move as intended, if required for the application.
  • Brackets do not interfere with cameras, sensors, trim panels, or overhead controls.
  • Wiring can reach power and control points without crossing airbag zones.
  • The installed unit can be removed for windshield replacement or interior service without damaging the vehicle.

Choose the Right Mounting Method

Most interior visor lights use adjustable brackets that attach near the sun visor mounts, to an approved headliner structure, or through a vehicle-specific mounting arrangement. The best method depends on the vehicle and the bracket design, not simply on what is fastest.

Using existing visor mounting points can provide a tidy result, but only when the supplied hardware and bracket geometry are suitable. Never assume an original visor screw is long enough once a bracket has been added. It must engage the intended mounting structure fully without bottoming out, stripping threads, or reaching components behind the headliner. If the supplied hardware does not suit the vehicle, stop and source the correct fastener rather than forcing the fit.

Avoid relying on adhesive pads, self-tapping screws into thin trim, or improvised clips for a professional warning light. Interior heat, vibration, cold-weather contraction, and repeated door slams will expose weak mounting quickly. A visor light that moves even slightly can change its aiming, create glare, or eventually fall during normal driving.

Tighten mounting hardware evenly. Do not overtighten screws into plastic trim or small threaded points. The right result is secure brackets with no flex, no buzzing over bumps, and no pressure marks developing in the headliner. After the first week of operation, recheck the fasteners. Fleet vehicles operating on gravel roads, construction sites, and winter routes should have warning-light mounting points included in routine inspections.

Position the Light for Useful Warning Output

A visor light needs to be visible through the windshield without becoming a distraction inside the cab. Centre mounting generally gives the most balanced forward warning pattern, but it is not always possible where a mirror assembly, camera housing, or sensor occupies that space. In those vehicles, a low-profile unit or a different warning-light location may be the better answer.

Keep the light close to the upper windshield area and angle it according to the manufacturer’s instructions. The lenses should face outward cleanly, not upward into the headliner or downward toward the dash. At night, check for flash reflection in the windshield, hood, mirrors, and glossy dash trim. Small adjustments can make a meaningful difference.

Be realistic about what an interior visor light can do. It is an effective forward-facing warning device for many applications, particularly when a roof installation is not practical. It does not replace rear-facing warning coverage for tow trucks, roadside service units, work vehicles, or escort operations. Road users approaching from behind need their own clear warning signal, often supported by rear beacons, surface mounts, or a traffic advisor suited to the operation.

When specifying equipment, look at the unit’s intended use, flash pattern options, lens colour, and applicable SAE marking. SAE J595 is commonly referenced for directional flashing warning lamps, while SAE J845 applies to certain optical warning devices such as beacons. The rating of the light is only one part of the decision. Vehicle use, warning colour, placement, and operation may be governed by local requirements that vary by jurisdiction. Confirm the requirements that apply to your fleet and operating area before putting the vehicle into service.

Route Wiring Without Creating Future Problems

The cleanest install is usually the most reliable install. Plan the wire path before connecting power. A visor-light harness commonly needs a positive feed, a ground, and one or more control wires for on-off switching, flash pattern selection, or synchronization with other warning equipment.

Do not tuck wiring behind trim blindly. Remove the necessary trim carefully, identify the route, and keep the harness away from sharp metal edges, moving visor arms, steering components, pedal areas, and airbag components. Where a wire passes near a metal opening, protect it with suitable loom, a grommet, or abrasion-resistant covering. A wire that looks fine on installation day can rub through after a season of vibration.

Power should be fused at the source using the fuse value specified by the light manufacturer. On fleet vehicles, an ignition-switched circuit is often preferable when the light should not be left operating with the key off. Some applications require controlled battery power for stationary roadside work, but that choice should account for battery draw, operating procedure, and the risk of an unplanned dead battery.

Use a proper ground point on clean, bare chassis metal where appropriate, or use a dedicated negative return as specified by the vehicle and equipment manufacturer. Poor grounds are a frequent cause of dim output, intermittent operation, random flash behaviour, and nuisance electrical faults. Do not twist wires together and cover them with tape. Use correctly sized crimp terminals, heat-shrink connections, and secure strain relief.

If the visor light is part of a larger warning package, connect it through a suitable controller or switching system. This gives the operator a clear, repeatable way to activate the correct warning mode. It also helps prevent a cab from filling up with loose switches, overloaded accessory circuits, and mystery wiring that no one can service later.

Test It Like a Field Vehicle

Bench testing proves the light turns on. It does not prove the installation is ready for service. Once the trim is reinstalled, test the unit in daylight and darkness. Confirm every switch function, flash pattern, and synchronization setting. Start the vehicle and check for electrical interference, warning messages, radio noise, or unexpected behaviour from cameras and accessories.

Then perform a practical walk-around. View the vehicle from directly ahead and from off-centre angles at a realistic distance. Check whether the windshield produces excessive reflection and whether the light remains visible when the vehicle is parked on a slight grade. If the unit will be used around traffic, assess it in the same operating conditions your crews face, not only inside a shop.

Finally, inspect the installation with the engine running and the heater fan on high. Vibration often reveals a bracket that needs adjustment or a wire that was not secured well enough. This is where professional-grade equipment and a No-BS installation standard matter. Good warning lighting is not just bright. It is mounted, wired, and operated in a way that supports the people working around moving traffic.

A visor light should earn its place in the vehicle every shift. Mount it securely, protect the vehicle’s safety systems, test it under real conditions, and make it one part of a complete visibility plan built for the roadside.
