A beacon that works perfectly in the yard but cuts out on a dark shoulder is not a visibility system. It is a liability. Knowing how to wire work beacons properly means looking beyond the light itself: the circuit needs to handle vibration, weather, electrical load, operator use, and the realities of a commercial vehicle that may be on the road all day.

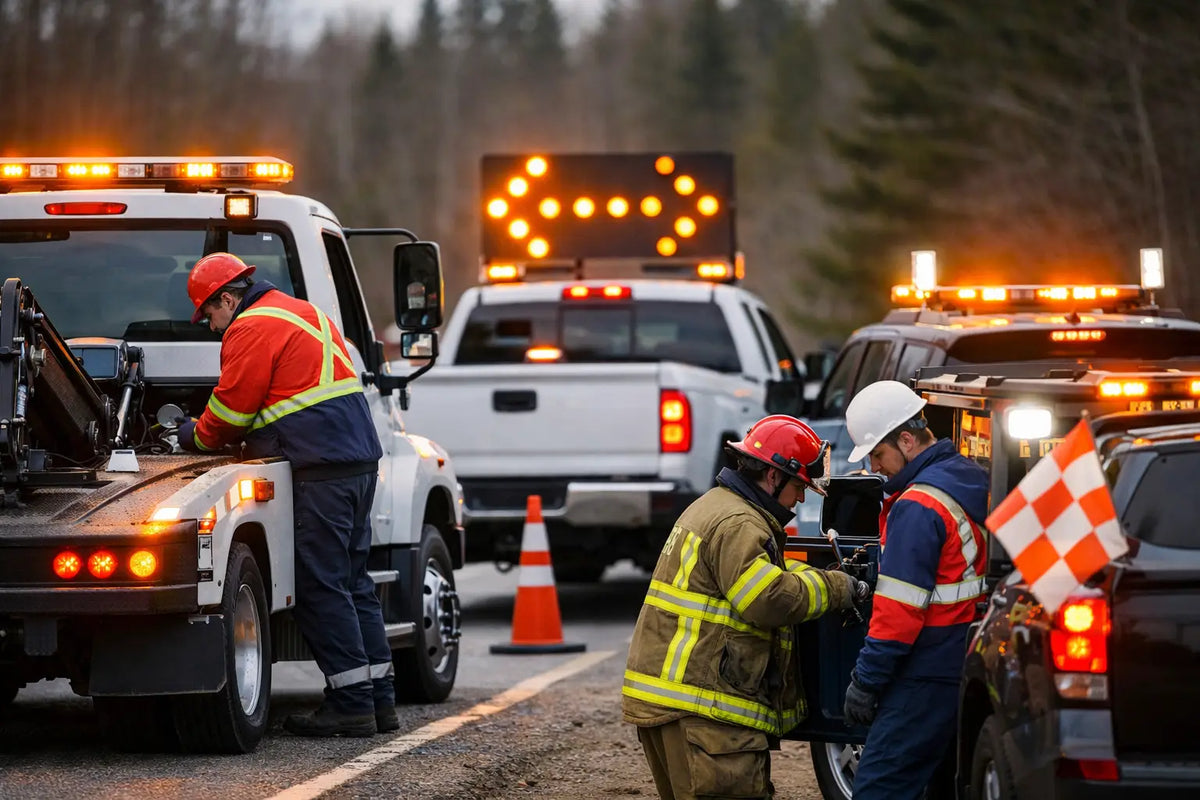

For tow trucks, utility units, snow removal equipment, municipal fleets, pilot vehicles, and construction pickups, warning lighting should be installed as part of a complete roadside safety plan. The beacon helps make the vehicle more recognizable, but it does not replace high-visibility PPE, traffic control, safe vehicle positioning, or a proper work-zone procedure.
Start With the Beacon and Its Intended Use
Before running a single wire, confirm what the beacon is expected to do. A single amber rotating or flashing beacon may suit a compact service vehicle operating on private property, in parking lots, or at low-speed worksites. A truck working on active roadways may need a more comprehensive package, such as a lightbar, rear-facing warning lights, and a traffic advisor, depending on the work being performed and the visibility risks involved.
Check the beacon's voltage, current draw, mounting instructions, and wire requirements. Most fleet beacons are 12-volt DC, but 24-volt equipment is common in heavy-duty applications. Never assume a light is compatible with the vehicle simply because the connector fits.
For vehicles operating on public roads, also consider the applicable requirements in your province, employer policy, customer site rules, and the vehicle's operating role. SAE J845 is commonly associated with warning lamps, while SAE J595 addresses optical warning devices more broadly. An SAE-rated product can be a useful specification benchmark, but the installation and permitted use still need to suit the jurisdiction and application.
Plan the Circuit Before You Install It
The cleanest installations are planned before panels come off and holes are drilled. Identify where the beacon will mount, where wiring will enter the vehicle body, where the switch or controller will sit, and where the circuit will receive power.
A work beacon should normally be supplied by a dedicated fused circuit. Do not tap into an existing tail light, marker light, radio, or accessory wire because it happens to be nearby. Shared circuits can create nuisance failures, overload factory wiring, cause backfeed problems, or make troubleshooting miserable later.
Calculate the total load first. LED beacons use far less current than older halogen or strobe equipment, but current draw still matters. Add the rated amperage of every light on the circuit, then size the wire, fuse, relay, switch, and connectors to handle that load with a reasonable margin. The light manufacturer's instructions should always be the starting point.
As a general field practice, keep wire runs as short and protected as possible. Larger wire may be required for longer runs or higher-draw systems to avoid voltage drop. Low voltage at the beacon can reduce output, create erratic flash patterns, and shorten component life.
Choose the Right Power Source
For most installations, use an ignition-controlled source for the relay trigger so the warning system cannot be left on accidentally after the vehicle is shut down. The beacon's main power should come from a properly fused battery feed or approved auxiliary power distribution point.
There are exceptions. Some fleets require lighting to operate with the ignition off during roadside work, loading, or scene protection. If that is the operational need, use a properly designed circuit with clear operator controls and a process to prevent excessive battery drain. This is where a fleet lighting controller or timer can be worth the added cost.
The Basic Work Beacon Wiring Layout
A professional installation generally follows this sequence: battery or auxiliary power source, fuse, relay, beacon, and ground. The switch activates the relay, rather than carrying the full beacon load itself.
The relay keeps higher current out of the dashboard switch and allows the switch wiring to remain lighter and easier to route. It also makes future expansion simpler. If a fleet later adds a second beacon or rear warning lights, the circuit can be upgraded without rebuilding the entire dash installation.
Use a fuse close to the power source. The fuse protects the wire, not just the beacon. If a wire rubs through on a sharp body edge and shorts to ground, a correctly located fuse limits the chance of the wire becoming the weak link.
For a conventional four-pin relay, terminal 30 receives fused battery power, terminal 87 sends power to the beacon, terminal 85 goes to ground, and terminal 86 receives switched trigger power. Some relays use different numbering or include additional terminals, so verify the relay diagram rather than relying on memory.
A simple waterproof rocker switch can work well on a single-beacon installation. For multiple warning devices, a labelled multi-function controller is usually the better choice. It reduces dash clutter, gives the operator clear control over modes, and makes it easier to train drivers on the lighting package.
Use Proper Wire, Connectors, and Protection
Road salt, vibration, pressure washing, gravel roads, heat, and repeated door or body movement are hard on vehicle wiring. Household wire, electrical tape-only joints, and open butt connectors do not belong on a working fleet vehicle.
Use automotive-grade stranded copper wire, heat-shrink crimp connectors, sealed connectors where appropriate, split loom or braided sleeve, and grommets anywhere wiring passes through metal. Support the harness with proper clips or cable ties so it cannot hang, rub, or contact exhaust components, steering parts, sharp brackets, or moving suspension components.
When routing a roof-mounted beacon wire, pay close attention to the entry point. A drilled hole must be deburred, protected with a grommet, sealed against moisture, and positioned so water cannot travel down the cable into the headliner or electrical system. On magnetic or temporary-mount beacons, route the cable so it cannot be pinched by doors, dragged across paint, or exposed to windshield wiper movement.
Grounding deserves the same care as the positive side. A poor ground is one of the most common causes of intermittent warning lighting. Use a clean, bare-metal chassis point or a designated factory ground location. Remove paint only where necessary, use an appropriate terminal and fastener, protect the connection from corrosion, and avoid grounding through thin sheet metal if a stronger point is available.
Mounting Affects Electrical Reliability
A beacon can be wired correctly and still perform poorly if the mount is wrong. Roof-mounted units need a stable surface that can handle vibration and wind load. Pole-mounted beacons should be positioned where they are visible but not vulnerable to branches, equipment movement, or routine loading activity.
Check clearance around ladders, boom controls, roof racks, toolboxes, aerial devices, and tailgates. On service bodies, a rear beacon or mini-bar may be more practical than a roof unit if the roof line is obstructed. For snow and winter operations, account for ice buildup, plow equipment, and the need to clear the lens during inspections.
The most effective warning-light package is not always the brightest one. It is the one that provides useful visibility from the directions where approaching traffic, equipment operators, and workers need to identify the vehicle. Excessive forward-facing flash can create glare for the driver, while poorly placed rear lighting may be hidden by a raised tailgate, open compartments, or carried equipment.
Test the System Like It Will Be Used
Once the beacon is connected, test it before reinstalling trim panels. Confirm that the fuse rating matches the circuit design, the switch controls the intended light, and the relay does not heat up during operation. Check voltage at the beacon with the system running, especially if the wire run is long.
Then test it outside. Look at the vehicle from the front, rear, and both sides at a realistic distance. Test in daylight and, if possible, in darkness. Verify that the beacon remains visible with doors open, tools loaded, the tailgate down, or other work equipment in its normal position.
Finally, run the vehicle and operate common electrical loads such as headlights, heater fan, work lights, PTO equipment, or charging systems. Watch for dimming, flicker, radio interference, or unexpected interactions with other accessories. These issues are easier and cheaper to correct before the unit returns to service.
Common Work Beacon Wiring Mistakes
The most frequent installation problems are predictable: undersized wire, an oversized fuse, an unfused battery feed, poor grounding, unsealed roof penetrations, and unsupported wiring routed near sharp metal. Another common issue is using one small switch to power several lights directly. It may work at first, but heat, voltage drop, and switch failure often follow.
Avoid mounting a beacon without considering service access. If a failed unit requires removing a headliner, dismantling a roof rack, or cutting cable ties buried behind a body panel, routine maintenance becomes expensive. Leave enough service loop to replace the light, but not so much loose cable that it can chafe or snag.
A Better Standard for Fleet Installations
For a single pickup beacon, a clean fused relay circuit may be all that is needed. For a municipal, towing, utility, or multi-vehicle fleet, standardize the installation. Use the same wire colours, fuse locations, switch labels, connectors, and documentation across similar units. That approach reduces downtime when a new technician has to diagnose a problem on the side of the road.
Record the circuit details in the vehicle file: beacon model, fuse size, relay location, power source, ground location, and wiring route. This is practical fleet management, not paperwork for its own sake. It protects the investment and gives operators confidence that the visibility equipment is built for real work.
A properly installed beacon is one small part of roadside risk reduction, but it is a part worth doing right. Build the circuit to survive the weather, the vibration, and the next urgent callout - then inspect it often enough to make sure it still will.
