Fix Roof Beacon Placement Gaps: 3 Mounts for Canadian Fleets

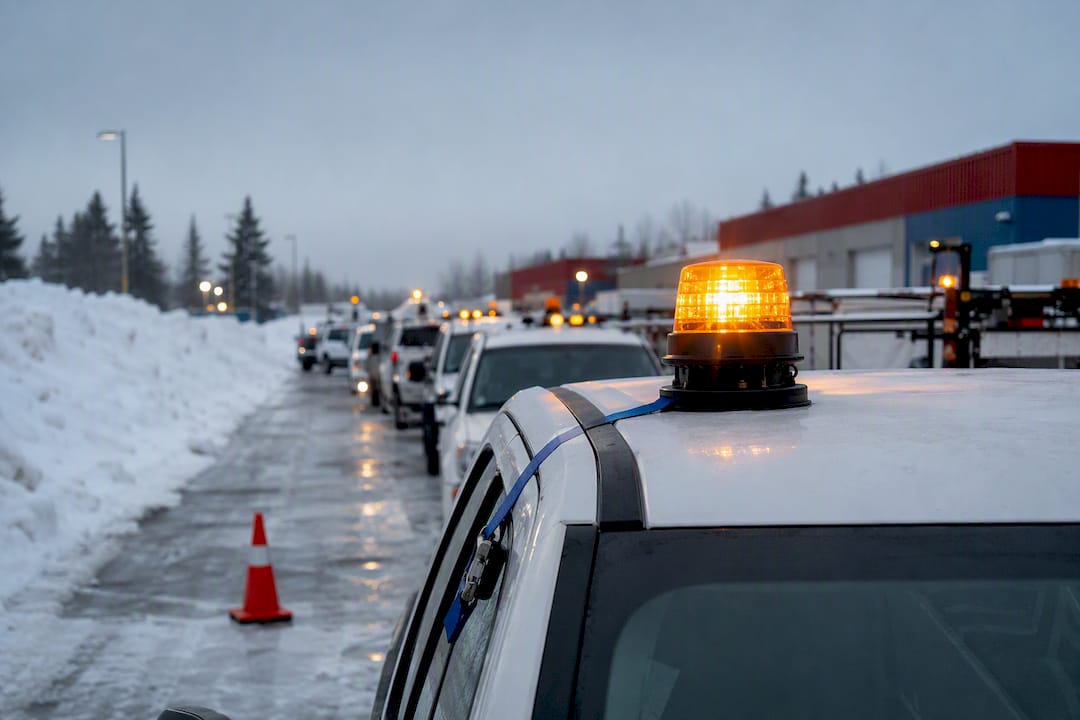

Amber roof beacon above snowy fleet vehicle

KN |

Mount roof beacons at the highest unobstructed point on the vehicle, whether that’s a headache rack, a raised bracket, or roof centre, and supplement with grille or rear lights wherever cargo, racks or vehicle geometry create low-angle gaps. Whatever position you choose, verify it with the vehicle loaded and in its working posture before calling the install final.

TL;DR:

  • Mount roof beacons at the highest unobstructed point to maximize long-range visibility, especially on vehicles without racks or cargo that block line of sight.
  • Placement should be verified with the vehicle loaded and in its typical working posture to ensure coverage from all approach angles.
  • Rack mounts are preferred to avoid roof penetration and clear cargo, while supplementary lower-level lights close blind spots on taller trucks.
  • Consider operational profile, visibility goals, installation constraints, regulations, and budget when choosing the best mounting method and placement.
  • Run thorough field tests with the vehicle loaded to confirm all approach angles are covered before finalizing installation.

What roof beacon placement gives the best coverage?

Fleet managers ask this question after they’ve already bought the beacon. That’s backwards. Placement decisions shape how much of your warning signal actually reaches other drivers, and no amount of lumen output fixes a beacon mounted where a ladder rack blocks half its output.

The industry term for this is “conspicuity”, the measurable ability of a warning light to be seen and recognized in real driving conditions. It’s not the same as brightness. A beacon rated for high output can still fail at conspicuity if it’s positioned where booms, toolboxes or open compartment doors interrupt the light path.

Here’s where placement typically works best, by vehicle type and use case:

  • Headache rack or rack mount: the go-to choice for pickups and service trucks hauling ladders, pipe, or equipment. It clears the load entirely and skips drilling into the cab roof.
  • Highest unobstructed roof point: best for vehicles without racks where you want maximum long-range visibility, such as plow trucks or municipal vehicles working open roadways.
  • Raised bracket: useful when the factory roofline sits lower than surrounding cargo or accessories, giving the beacon the extra few inches it needs to clear line-of-sight obstructions.
  • Low-profile roof-centre mount: suited to dedicated vehicles, like funeral coaches or pilot cars, where a slim profile matters as much as visibility.
  • Grille, bumper or rear surface lights: not a substitute for the roof beacon, but a necessary supplement anywhere the roof position leaves a blind spot below the horizon line.
  • Magnetic or temporary mounts: appropriate for short-term jobs, rented equipment, or vehicles that rotate between roles, but not built for sustained highway speed or rough terrain.

Rack-mounted installations in particular tend to clear the signal over vehicle loads and avoid drilling into the cab, which is why so many tow and construction fleets default to them. Roof-mounted bars and raised points also do more to cut risk at intersections, according to research on emergency vehicle lighting, but that same research notes grille and lower-level lights close the gaps a roof position can’t reach on its own.

Pro Tip: Walk around your own vehicle with the cargo loaded exactly as it would be on a job. Stand where an approaching driver would stand. If you can’t see the beacon clearly from that angle, neither can they.

How do you decide where to place a roof beacon?

Placement isn’t a single answer. It’s a set of trade-offs specific to your vehicle, your work, and your local rules. Run through these five factors before you commit to a mount point.

  1. Operational profile. A one-ton service truck with a permanent ladder rack has different clearance needs than a plow truck or a pilot car with no rack at all. Trailers change the picture too, since a beacon mounted too far forward can be shadowed by whatever’s being towed.
  2. Visibility objectives. Decide upfront whether front, rear, side, or corner coverage matters most for your work. A tow operator working roadside shoulders needs different coverage than a survey crew working intersections.
  3. Installation constraints. Check your structural attachment points, your wiring path from roof to cab, and how much controller lead length you actually have to work with before you buy anything.
  4. Regulatory and organizational requirements. Permitted colours, allowable light counts, and mounting rules vary by jurisdiction and vehicle class. Ontario’s Regulation 851/00 is one example of how specific these rules can get, and reviews of state and provincial regulation confirm the inconsistency runs wide. Strobe My Ride can’t give you legal advice on your specific fleet, but our team can point you toward the right product specs to bring to your own compliance review.
  5. Budget and serviceability. Factor in how easy the module is to access for repair or replacement, not just the sticker price. A beacon buried under a rack accessory is a headache the day it needs service.

That same research on roadside lighting found that higher mounting positions, combined with multiple light displays rather than a single unit, tend to alert approaching drivers more reliably. That’s a strong argument for treating placement and light count as one decision, not two separate ones.

Mounting method trade-offs: what fits your vehicle

No single mounting method wins across every fleet. Each comes with a clear trade-off between stability, height, cost, and how invasive the install is.

  • Permanent roof mounts sit low and stable, and they hold up well at highway speed, but they typically require drilling through the roof skin and routing wire into the cab, which adds labour and a permanent modification.
  • Rack or headache-rack mounts give you elevation that clears cargo without touching the cab roof at all. This is the default many upfitters reach for on trucks that already have a rack installed, since it avoids roof penetration entirely.
  • Pole mounts add height and angle control beyond what a flat rack surface allows, which matters when cargo sits taller than the rack itself. Strobe My Ride’s Beacon AM600 Mounts are built for exactly this application.
  • Magnetic mounts need no drilling and go on in seconds, making them useful for rented, borrowed, or occasional-use vehicles. They’re a poor fit for sustained highway speed or rough terrain, where vibration and airflow work against a magnetic base.
  • Surface mounts on the grille, bumper, or rear panel don’t replace the roof beacon. They close the low-angle and rear coverage gaps a roof mount leaves behind, particularly on taller trucks.

Comparing methods head to head, the real differences show up across visibility, invasiveness, obstruction clearance, cost, and how easy the unit is to service later:

How do you test and verify beacon placement in the field?

A beacon that looks correctly placed in the shop can still have blind spots on the road. Run this check every time you install or reposition one.

  1. Load the vehicle first. Test with tools, ladders, trailers, or plow blades attached exactly as they would be on a shift, not as the vehicle sits empty in the bay.
  2. Check sightlines from every approach angle. Walk the front, rear, and both sides at typical approach distances, and repeat at night if the vehicle runs after dark.
  3. Bring an assistant. Have someone stand at realistic approach distances while you confirm how quickly they spot the signal and whether cargo shadows any angle.
  4. Verify the electrical setup. Confirm the controller lead reaches comfortably, the switch sits somewhere the driver can use it without fumbling, and the unit stays accessible for service.
  5. Record what you find, and fix gaps immediately. If a corner or rear angle comes up short, that’s the moment to add a supplementary module, not after the truck’s back on the road.

Pro Tip: Keep a simple log of load configurations you’ve tested. A truck that clears fine empty can develop a completely different shadow pattern once the rack is loaded with pipe or ladders.

Installation checklist and mistakes that cost you coverage

Before you call an install finished, run through this sequence: pick the mount point, confirm the roof or rack structure can support it, map the wiring route and controller location, measure the lead length against that route, secure the hardware, seal any roof penetrations, and run a full function test.

The mistakes that undercut coverage tend to repeat across fleets:

  • Mounting too low, where cargo or cab height blocks the signal from common approach angles.
  • Skipping the loaded-vehicle test and only checking the beacon on an empty truck.
  • Assuming brightness alone solves visibility, when position is what actually determines what other drivers see.
  • Ignoring rear and corner coverage in favour of a strong front and centre view.
  • Ordering a controller lead too short for the actual wiring route, forcing a rework mid-install.

Use rack mounts where the vehicle allows it, add rear-facing supplements as standard practice rather than an afterthought, and keep a spare module on hand so a failed unit doesn’t take the whole truck out of service.

How Strobe My Ride supports your placement decisions

Strobe My Ride stocks the mounting hardware and beacon options fleets actually need once placement decisions are made. Three products come up most often in these conversations:

Certifications, permitted colours, and vehicle compatibility vary by SKU and by jurisdiction, so confirm the specifics on each product page or by contacting our team directly before you order. And on cost: warning lighting doesn’t need to be expensive. Every beacon we sell carries a 3 year no bs warranty, full stop.

For more background before you buy, our guides on choosing amber beacons that work and beacons for work trucks and fleets cover the selection side of this decision in more depth.

Ready to fix your fleet’s coverage gaps?

If you’ve read this far, you already know that a beacon in the wrong spot is a liability disguised as a warning light. Strobe My Ride built its catalogue around that exact problem: real mounting hardware, real amber and duo-colour beacon options, and straight answers about which one fits your rack, your pole, or your roofline, without pushing you toward the priciest unit on the shelf.

That’s the difference for a Canadian fleet manager comparing options. You’re not choosing between a cheap beacon and an expensive one. You’re choosing a supplier that backs every unit with a 3 year no bs warranty and stocks the mounts, like the AM600 Mounts, to get the placement right the first time.

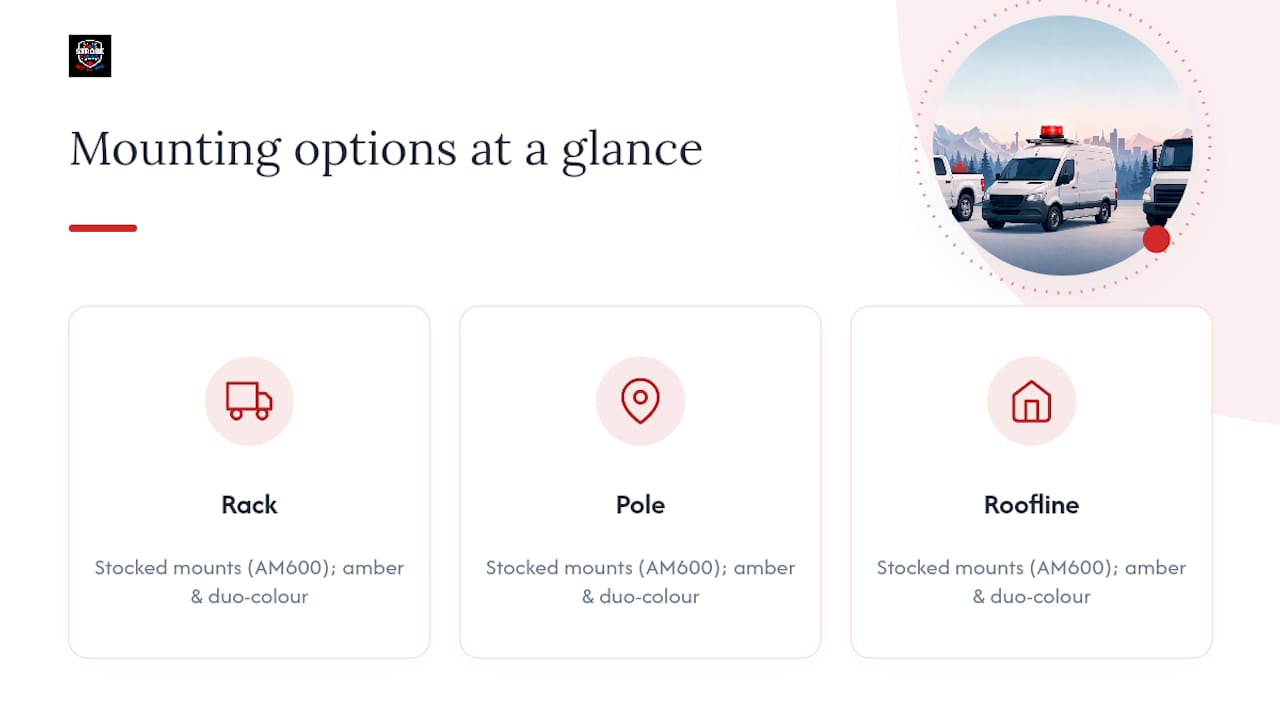

Ready to fix your fleet's coverage gaps? — overview diagram

Browse the amber warning beacons collection, match a unit to the mounting method your vehicle actually needs, or check the roof-mount warning beacon guide for Canadian-specific product picks, then reach out to our team if your rack, pole, or roofline needs a second opinion before you order.
